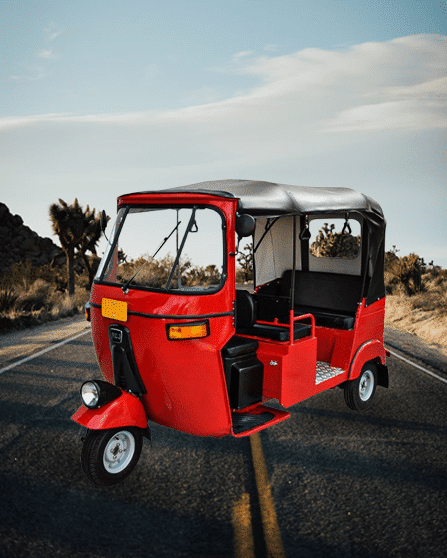

Passenger EV - Atom Plus
Passenger EV – Atom Plus
SPECIFICATIONS:
| Category | L3 |
|---|---|
| Motor Type | Dc |
| Motor Power | 48v/1000w |
| Controller | 24 Tubes |
| Battery (Lead Acid) | |
| Capacity | 12v/100a (4nos) Or 12v/150a (Optional) |
| Charging Voltage | 220v 50hz |
| Charging Time | 8-9 Hrs |
| Battery (Lithium -Ion) | |
| Capacity | 48v/80a Or 48v/100a Optional |
| Charging Voltage | 220v 50hz |
| Charging Time | 3-4 Hrs |
| Milage | 80-90 Km (One Charge) |
| Max. Speed | 23 Km/Hr |
| Seating Capacity | 4+D |
| Tyre Size | 4.00-8,6pr |
| Tyre Pressure(Front) | 2.1 Kg/Sq.Cm (30 Psi) |
| Tyre Pressure (Rear) | 2.4 Kg/Sq Cm (34 Psi) |
| Drive | Rear Wheel |
| Brakes | Hydraulic Expanding Shoe Type For All Three Wheels |
| Suspensions (Front) | Constant Rate Coil Spring & Double Acting Hydraulic Shock Absorber |
| Suspensions (Rear) | Independently Spring Wheels By Trailing Arms With Helical Springs And Hydraulic Shock Absorber |
| Electrical System | 12v Dc |
| Head Lamp | Single 35w |
| Horn | 12v Dc |
| Dimensions | 2800x990x1720mm |
